注册TCP服务器 注册WebSocket中间件
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Text.Json;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.SignalR.Client;
using Microsoft.AspNetCore.WebSockets;
var builder = WebApplication.CreateBuilder(args);
// 注册TCP服务
builder.Services.AddSingleton();
builder.Services.AddHostedService(sp => sp.GetRequiredService());
// 注册WebSocket中间件
builder.Services.AddSingleton();
builder.WebHost.UseUrls("http://*:5000");//指定websocket端口号
var app = builder.Build();
// WebSocket中间件
app.UseWebSockets();
app.Use(async (context, next) =>
{
if (context.WebSockets.IsWebSocketRequest)
{
var webSocketManager = context.RequestServices.GetRequiredService();
var webSocket = await context.WebSockets.AcceptWebSocketAsync();
await webSocketManager.HandleWebSocketConnectionAsync(webSocket);
}
else
{
await next(context);
}
});
app.Run();
tcp服务实现
public class TcpServer : BackgroundService
{
private readonly WebSocketManagement _webSocketManager;
private const int Port = 8081;
private const int PacketSize = 14;
private const int CheckSumSize = 2;
private TcpListener? _listener;
public TcpServer(WebSocketManagement webSocketManager)
{
_webSocketManager = webSocketManager;
}
protected override async Task ExecuteAsync(CancellationToken stoppingToken)
{
_listener = new TcpListener(IPAddress.Any, Port);
_listener.Start();
Console.WriteLine($"TCP server started on port {Port}");
try
{
while (!stoppingToken.IsCancellationRequested)
{
try
{
var client = await _listener.AcceptTcpClientAsync(stoppingToken);
_ = HandleClientAsync(client, stoppingToken);
}
catch (OperationCanceledException)
{
// 服务停止时正常退出
break;
}
}
}
finally
{
_listener.Stop();
Console.WriteLine("TCP server stopped");
}
}
private async Task HandleClientAsync(TcpClient client, CancellationToken ct)
{
var clientId = Guid.NewGuid().ToString();
Console.WriteLine($"Client connected: {clientId}");
using (client)
{
byte[] buffer = new byte[1024];
var stream = client.GetStream();
while (!ct.IsCancellationRequested)
{
try
{
int bytesRead = await stream.ReadAsync(buffer, 0, buffer.Length);
if (bytesRead > 0)
{
byte[] receivedData = new byte[bytesRead];
Array.Copy(buffer, receivedData, bytesRead);
Log.Information($"收到 {bytesRead} bytes 来自仪器.");
Console.WriteLine($"收到 {bytesRead} bytes 来自仪器.");
// 解析数据并生成应答
var result = await ParseData(receivedData/*, out byte[] response*/);
if (result.success)
{
Log.Information(result.message);
Console.WriteLine(result.message);
//响应发送
if (result.response.Length > 0) await stream.WriteAsync(result.response, 0, result.response.Length);
Log.Information($"响应发送.");
Console.WriteLine("响应发送.");
}
else
{
Log.Information($"Error: {result.message}");
Console.WriteLine($"Error: {result.message}");
}
}
}
catch (IOException ex)
{
Console.WriteLine($"Client {clientId} connection error: {ex.Message}");
return;
}
catch (ObjectDisposedException)
{
Console.WriteLine($"Client {clientId} connection closed");
return;
}
catch (Exception ex)
{
Console.WriteLine(ex.Message, $"Error processing client {clientId}");
return;
}
}
}
}
//血透
private const int ZL_PacketLength = 14;
public const byte ZL_START_CODE_UPLOAD = 0x55; // 血压计上传数据开始码
private static readonly byte[] ZL_Header = { 0x55, 0xAA };
// 解析数据包
private async Task ParseData(byte[] buffer/*, out byte[] response*/)
{
//response = null;
// 检查前导码
if (buffer.Length == ZL_PacketLength && buffer[0] == ZL_Header[0] && buffer[1] == ZL_Header[1])
{//
var result =await HemodialysisZLMonitor(buffer );
return (result.success,new byte[0], result.message);
}
else
{
return (false, new byte[0], "前导码错误");
}
//return (result.success, result.message);
}
///
/// 仪器（
///
///
///
///
private async Task HemodialysisZLMonitor(byte[] buffer)
{
// 计算校验和（前12字节的累加和）
ushort calculatedChecksum = 0;
for (int i = 0; i = 10 && modeWeight "Dialysis",
12 => "LowSuper",
13 => "SingleSuper",
14 => "BloodReturn",
15 => "Precharge",
16 => "SelfTest",
17 => "Disinfection",
_ => "Unknown"
};
}
private double ApplyDataWeight(ushort rawValue, int weight, byte dataId)
{
// 特殊处理电导值（数据标识0x09）
if (dataId == 0x09 && weight > 4)
return rawValue; // 按整数显示
return weight switch
{
0 or 15 => rawValue, // 整数
> 0 and rawValue / Math.Pow(10, weight), // 小数处理
_ => rawValue // 默认按整数处理
};
}
private (string name, string unit) GetDataInfo(byte dataId)
{
var dataMap = new Dictionary
{
{ 0x01, ("dehydration", "L") },//脱水1
{ 0x02, ("currentDehydration", "L") },//当前的脱水2
{ 0x03, ("dehydrationSpeed", "L/h") },//脱水速度3
{ 0x04, ("bloodPumpFlow", "ml/min") },//血泵流量4
{ 0x05, ("auxiliaryPump", "") },//辅助泵5
{ 0x06, ("syringe", "ml/h") },//注射器6
{ 0x07, ("dialysateFlow", "") },//透析液流量7
{ 0x08, ("dialysateTemperature", "°C") },//透析液温度8
{ 0x09, ("dialysateConductivity", "mS/cm") },//透析液电导9
{ 0x0A, ("venousPressure", "") },//静脉压力A
{ 0x0B, ("transmembranePressure", "") },//跨膜压力B
{ 0x0C, ("dialyzedTime", "min") },//已透析时间C
{ 0x0D, ("remainingTime", "min") },//剩余透析时间D
{ 0x0E, ("arterialPressure", "") },//动脉压E
{ 0x0F, ("sphygmomanometerHigh", "") },//血压计测量 高压F
{ 0x10, ("sphygmomanometerLow", "") },//血压计测量 低压10
{ 0x11, ("heartRate", "bpm") }//心率11
};
return dataMap.TryGetValue(dataId, out var info)
? info
: ("Unknown", "");
}
}
WebSocket服务
public class WebSocketManagement
{
private readonly ConcurrentDictionary _sockets = new();
public async Task HandleWebSocketConnectionAsync(WebSocket webSocket)
{
var buffer = new byte[1024 * 4];
var result = await webSocket.ReceiveAsync(new ArraySegment(buffer), CancellationToken.None);
if (result.MessageType == WebSocketMessageType.Text)
{
var deviceId = Encoding.UTF8.GetString(buffer, 0, result.Count);
_sockets[deviceId.Trim()] = webSocket;
Console.WriteLine("socket消息：" + deviceId);
}
while (webSocket.State == WebSocketState.Open)
{
await Task.Delay(100);
}
}
public async Task BroadcastAsync(string socketId, dynamic data)
{
var json = JsonConvert.SerializeObject(data);
var buffer = Encoding.UTF8.GetBytes(json);
_sockets.TryGetValue(socketId, out WebSocket socket);
if (socket!=null&&socket.State == WebSocketState.Open)
{
await socket.SendAsync(new ArraySegment(buffer), WebSocketMessageType.Text, true, CancellationToken.None);
}
else
{
_sockets.TryRemove(socketId, out _);
}
}
}

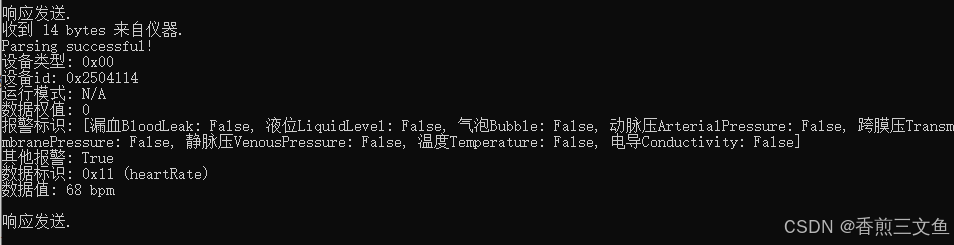

测试数据发送接收
# PowerShell
$data = [byte[]](0x55, 0xAA, 0x00, 0x26, 0x35, 0xB2, 0x00, 0x00, 0x01, 0x0E, 0x00, 0x00, 0x02, 0x1B)
$client = New-Object System.Net.Sockets.TcpClient('localhost', 8081)
$stream = $client.GetStream()
$stream.Write($data, 0, $data.Length)
$client.Close()
使用 WebSocket 测试工具：
浏览器开发者工具
https://websocketking.com/
