IT俱乐部 Java @Scheduled定时器原理及@RefreshScope相互影响

@Scheduled定时器原理及@RefreshScope相互影响

发布: 2023年 7月 20日 560阅读

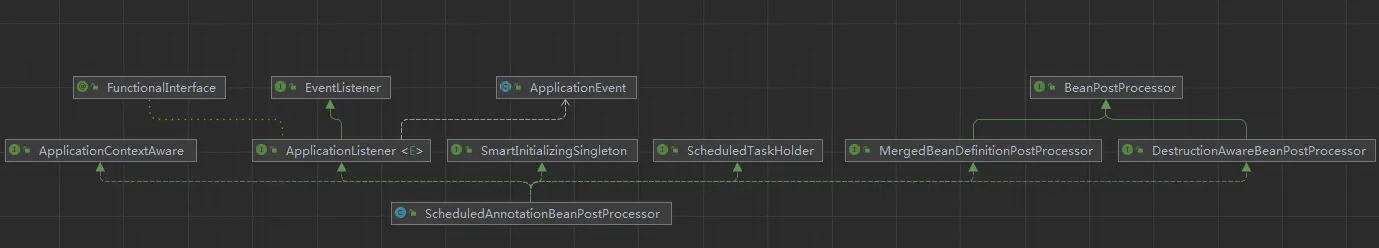

1.ScheduledAnnotationBeanPostProcessor

@EnableScheduling

  • @Import(SchedulingConfiguration.class)
  • 注册了ScheduledAnnotationBeanPostProcessor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
@RestController
@RefreshScope  //动态感知修改后的值
public class TestController implements ApplicationListener{
    @Value("${common.age}")
     String age;
    @Value("${common.name}")
     String name;
    @GetMapping("/common")
    public String hello() {
        return name+","+age;
    }
    //触发@RefreshScope执行逻辑会导致@Scheduled定时任务失效
    @Scheduled(cron = "*/3 * * * * ?")  //定时任务每隔3s执行一次
    public void execute() {
        System.out.println("定时任务正常执行。。。。。。");
    }
    @Override
    public void onApplicationEvent(RefreshScopeRefreshedEvent event) {
        this.execute();
    }
}

1.1 SmartInitializingSingleton#afterSingletonsInstantiated

ScheduledAnnotationBeanPostProcessor#afterSingletonsInstantiated

  • DefaultListableBeanFactory#preInstantiateSingletons
  • SmartInitializingSingleton#afterSingletonsInstantiated
  • 没干啥重要事情

1.2 RefreshScope处理ContextRefreshedEvent创建refresh中的bean

并调用ScheduledAnnotationBeanPostProcessor#postProcessAfterInitialization找出TestController中加了@Scheduled注解的方法。

ScheduledAnnotationBeanPostProcessor#postProcessAfterInitialization

  • 发布ContextRefreshedEvent
  • RefreshScope#onApplicationEvent
  • Object bean = this.context.getBean(name); 获取scope为refresh的bean：scopedTarget.testController
  • 会调用至postProcessAfterInitialization
  • 找到有@Scheduled注解的方法execute()
  • tasks.add(this.registrar.scheduleCronTask(new CronTask(runnable, new CronTrigger(cron, timeZone))));

1.3 ScheduledAnnotationBeanPostProcessor本身也能处理ContextRefreshedEvent

这里真正开始调度1.2中找到的任务。

ScheduledAnnotationBeanPostProcessor#onApplicationEvent

  • ScheduledAnnotationBeanPostProcessor也会处理ContextRefreshedEvent
  • ScheduledAnnotationBeanPostProcessor#finishRegistration
  • this.taskScheduler设置为ThreadPoolTaskScheduler（哪里配置的？）
  • ScheduledTaskRegistrar#afterPropertiesSet
  • ScheduledTaskRegistrar#scheduleTasks
  • 开始执行任务，这cronTasks不为空，则执行该任务
    addScheduledTask(scheduleCronTask(task));
  • ScheduledTaskRegistrar#scheduleCronTask
  • scheduledTask.future = this.taskScheduler.schedule(task.getRunnable(), task.getTrigger());
  • ThreadPoolTaskScheduler#schedule
  • ReschedulingRunnable#schedule以及ReschedulingRunnable#run实现定时调度，线程池为ScheduledThreadPoolExecutor

2.@RefreshScope的影响

当Nacos Config配置中心发布配置时，会调用RefreshScope#refreshAll。
此时会ScheduledAnnotationBeanPostProcessor#postProcessBeforeDestruction会将加了@RefreshScope的TestController里面的任务全部cancel掉。

1
2
3
4
public void refreshAll() {
    super.destroy();
    this.context.publishEvent(new RefreshScopeRefreshedEvent());
}

RefreshScope#refreshAll

  • GenericScope.BeanLifecycleWrapper#destroy
  • DisposableBeanAdapter#run
  • ScheduledAnnotationBeanPostProcessor#postProcessBeforeDestruction会将TestController里面的任务全部cancel掉。

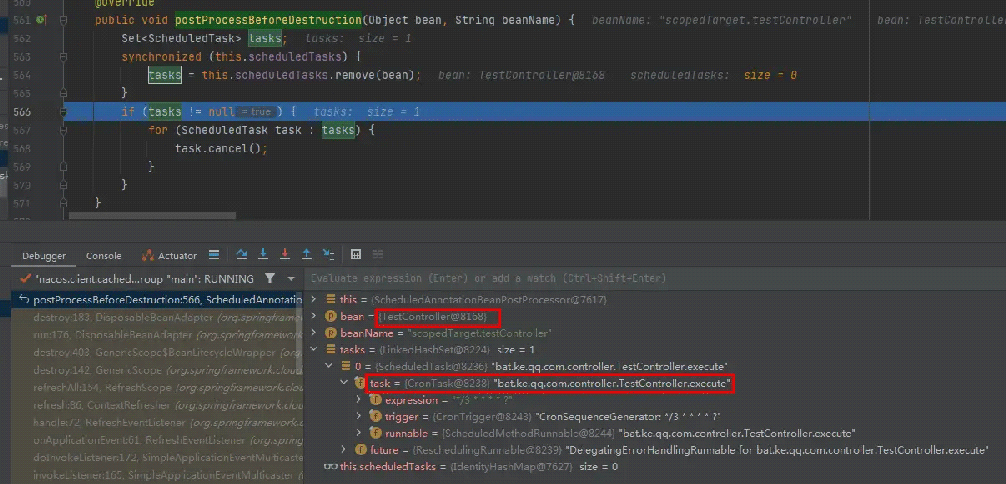

ScheduledAnnotationBeanPostProcessor#postProcessBeforeDestruction

1
2
3
4
5
6
7
8
9
10
11
12
@Override
public void postProcessBeforeDestruction(Object bean, String beanName) {
    Set tasks;
    synchronized (this.scheduledTasks) {
        tasks = this.scheduledTasks.remove(bean);
    }
    if (tasks != null) {
        for (ScheduledTask task : tasks) {
            task.cancel();
        }
    }
}

取消核心流程GenericScope#destroy()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public void destroy() {
    List errors = new ArrayList();
    Collection wrappers = this.cache.clear();
    for (BeanLifecycleWrapper wrapper : wrappers) {
        try {
            Lock lock = this.locks.get(wrapper.getName()).writeLock();
            lock.lock();
            try {
                wrapper.destroy();
            }
            finally {
                lock.unlock();
            }
        }
        catch (RuntimeException e) {
            errors.add(e);
        }
    }
    if (!errors.isEmpty()) {
        throw wrapIfNecessary(errors.get(0));
    }
    this.errors.clear();
}

2.1 ThreadPoolTaskScheduler在哪里配置的？

ThreadPoolTaskScheduler

  • 构造bean：nacosWatch：NacosWatch时会创建一个
  • 构造bean：taskScheduler：ThreadPoolTaskScheduler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public class TaskSchedulingAutoConfiguration {
    @Bean
    @ConditionalOnBean(name = TaskManagementConfigUtils.SCHEDULED_ANNOTATION_PROCESSOR_BEAN_NAME)
    @ConditionalOnMissingBean({ SchedulingConfigurer.class, TaskScheduler.class, ScheduledExecutorService.class })
    public ThreadPoolTaskScheduler taskScheduler(TaskSchedulerBuilder builder) {
        return builder.build();
    }
    @Bean
    @ConditionalOnMissingBean
    public TaskSchedulerBuilder taskSchedulerBuilder(TaskSchedulingProperties properties,
            ObjectProvider taskSchedulerCustomizers) {
        TaskSchedulerBuilder builder = new TaskSchedulerBuilder();
        builder = builder.poolSize(properties.getPool().getSize());
        Shutdown shutdown = properties.getShutdown();
        builder = builder.awaitTermination(shutdown.isAwaitTermination());
        builder = builder.awaitTerminationPeriod(shutdown.getAwaitTerminationPeriod());
        builder = builder.threadNamePrefix(properties.getThreadNamePrefix());
        builder = builder.customizers(taskSchedulerCustomizers);
        return builder;
    }

2.2 TestController改造成ApplicationListener

这样做为什么能够保证定时任务正常执行？

  • RefreshScope#refreshAll
  • 发布RefreshScopeRefreshedEvent事件
  • 调用到TestController代理对象#onApplicationEvent
  • CglibAopProxy.DynamicAdvisedInterceptor#intercept
  • SimpleBeanTargetSource#getTarget
  • AbstractBeanFactory#getBean获取scopedTarget.testController
  • GenericScope#get
  • 会创建真正的TestController实例，然后初始化后调用ScheduledAnnotationBeanPostProcessor#postProcessAfterInitialization找出TestController中加了@Scheduled注解的方法
  • TestController#onApplicationEvent
  • this.execute();
  • 真正调用的是ReschedulingRunnable#run

以上就是@Scheduled定时器原理及@RefreshScope相互影响的详细内容，更多关于Scheduled定时器RefreshScope的资料请关注IT俱乐部其它相关文章！

本文收集自网络，不代表IT俱乐部立场，转载请注明出处。https://www.2it.club/code/java/8822.html
