概述
实际生活有很多树形结构的数据，比如公司分为多个部门，部门下分为多个组，组下分为多个员工；省市县的归属；页面菜单栏等等。
如果想查询某个节点的父节点或者子节点，一般通过表自身连接完成，但如果该节点的子节点还有多层结构，就需要使用递归调用。但如果数据量特别大，递归的次数指数级上升，而且查询数据库的次数也指数级上升，导致程序和数据库压力剧增，查询时间特别长。那数据库有没有递归查询语句呢？答案是肯定的。
start with connect by prior 递归查询
1、数据准备
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 | create table area_test( id number(10) not null, parent_id number(10), name varchar2(255) not null);alter table area_test add (constraint district_pk primary key (id));insert into area_test (ID, PARENT_ID, NAME) values (1, null, '中国');insert into area_test (ID, PARENT_ID, NAME) values (11, 1, '河南省'); insert into area_test (ID, PARENT_ID, NAME) values (12, 1, '北京市');insert into area_test (ID, PARENT_ID, NAME) values (111, 11, '郑州市');insert into area_test (ID, PARENT_ID, NAME) values (112, 11, '平顶山市');insert into area_test (ID, PARENT_ID, NAME) values (113, 11, '洛阳市');insert into area_test (ID, PARENT_ID, NAME) values (114, 11, '新乡市');insert into area_test (ID, PARENT_ID, NAME) values (115, 11, '南阳市');insert into area_test (ID, PARENT_ID, NAME) values (121, 12, '朝阳区');insert into area_test (ID, PARENT_ID, NAME) values (122, 12, '昌平区');insert into area_test (ID, PARENT_ID, NAME) values (1111, 111, '二七区');insert into area_test (ID, PARENT_ID, NAME) values (1112, 111, '中原区');insert into area_test (ID, PARENT_ID, NAME) values (1113, 111, '新郑市');insert into area_test (ID, PARENT_ID, NAME) values (1114, 111, '经开区');insert into area_test (ID, PARENT_ID, NAME) values (1115, 111, '金水区');insert into area_test (ID, PARENT_ID, NAME) values (1121, 112, '湛河区');insert into area_test (ID, PARENT_ID, NAME) values (1122, 112, '舞钢市');insert into area_test (ID, PARENT_ID, NAME) values (1123, 112, '宝丰市');insert into area_test (ID, PARENT_ID, NAME) values (11221, 1122, '尚店镇'); |
2 start with connect by prior递归查询
- start with 子句：遍历起始条件。如果要查父结点，这里可以用子结点的列，反之亦然。
- connect by 子句：连接条件。prior 跟父节点列parentid放在一起，就是往父结点方向遍历；prior 跟子结点列subid放在一起，则往叶子结点方向遍历。parent_id、id两列谁放在 “=” 前都无所谓，关键是prior跟谁在一起。
- order by 子句：排序。
常用的select项：
LEVEL：级别
connect_by_root：根节点
sys_connect_by_path：递归路径
2.1 查询所有子节点
1 2 3 4 | select t.*,LEVELfrom area_test tstart with name ='郑州市'connect by prior id=parent_id |

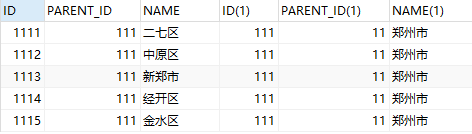

其实，如果单层结构，使用表自身连接也可以实现：
1 2 | select * from area_test t1,area_test t2 where t1.PARENT_ID = t2.ID and t2.name='郑州市'; |

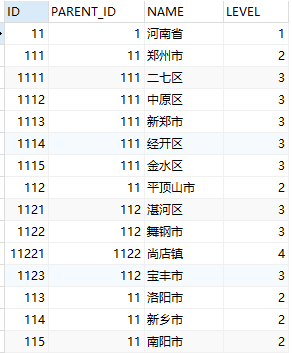

当查询节点下有多层数据：
1 2 3 4 | select t.*,LEVELfrom area_test tstart with name ='河南省'connect by prior id=parent_id |

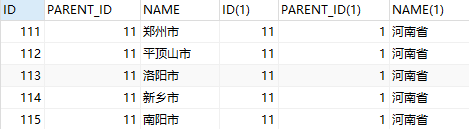

1 2 | select * from area_test t1,area_test t2 where t1.PARENT_ID = t2.ID and t2.name='河南省'; |
如果使用自身连接，也只能查到子一级节点的数据，需要遍历子一级节点，递归查询每个子一级节点下的子节点。明显麻烦很多！！！
2.2 查询所有父节点
1 2 3 4 5 | select t.*,levelfrom area_test tstart with name ='郑州市'connect by prior t.parent_id=t.idorder by level asc; |

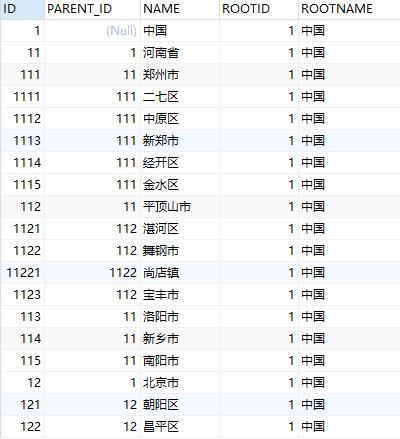

2.3 查询指定节点的根节点
1 2 3 4 5 6 7 | select d.*, connect_by_root(d.id) rootid, connect_by_root(d.name) rootnamefrom area_test dwhere name='二七区'start with d.parent_id IS NULLconnect by prior d.id=d.parent_id |
1 2 3 4 5 6 | select d.*, connect_by_root(d.id) rootid, connect_by_root(d.name) rootnamefrom area_test dstart with d.parent_id IS NULLconnect by prior d.id=d.parent_id |

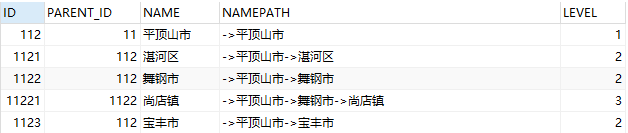

2.4 查询下行政组织递归路径
1 2 3 4 | select id, parent_id, name, sys_connect_by_path(name, '->') namepath, levelfrom area_teststart with name = '平顶山市'connect by prior id = parent_id |
3 with递归查询
3.1 with递归子类
1 2 3 4 5 6 7 8 9 10 11 | with tmp(id, parent_id, name) as ( select id, parent_id, name from area_test where name = '平顶山市' union all select d.id, d.parent_id, d.name from tmp, area_test d where tmp.id = d.parent_id )select * from tmp; |
3.2 递归父类
1 2 3 4 5 6 7 8 9 10 11 12 | with tmp(id, parent_id, name) as ( select id, parent_id, name from area_test where name = '二七区' union all select d.id, d.parent_id, d.name from tmp, area_test d where tmp.parent_id = d.id )select * from tmp; |
4 MySQL 递归查找树形结构
参考文章：Oracle递归查询
