可视化定时任务quartz集成解析全过程

发布: 2023年 4月 13日 598阅读

前言

在日常的工作中，定时任务也是一个非常常见的需求，可以使用注解实现，但是使用这种方式有几个问题，首先就是如果修改比较麻烦，而且没有提供特定的页面对定时任务进行可视化管理。所以quartz就应运而生。本文将介绍如何实现springboot与quartz的整合。

1.目录结构

配置类 配置SchedulerFactory固化定时任务和日志的业务类定时任务类运行配置

2.原理

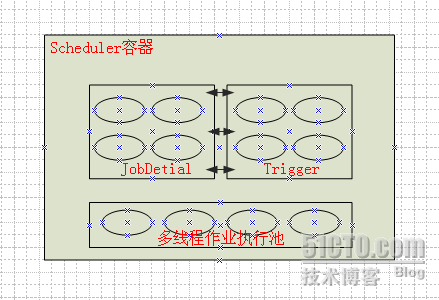

  1. scheduler是一个计划调度器容器（总部），容器里面可以盛放众多的JobDetail和trigger，当容器启动后，里面的每个JobDetail都会根据trigger按部就班自动去执行。
  2. JobDetail是一个可执行的工作，它本身可能是有状态的。
  3. Trigger代表一个调度参数的配置，什么时候去调。
  4. 当JobDetail和Trigger在scheduler容器上注册后，形成了装配好的作业（JobDetail和Trigger所组成的一对儿），就可以伴随容器启动而调度执行了。
  5. scheduler是个容器，容器中有一个线程池，用来并行调度执行每个作业，这样可以提高容器效率

3.表结构

自带有11张系统表和2张业务表(自建)，其中绿色为自己建立的表

4.整合springboot

1.pom文件

1
org.quartz-schedulerquartz2.2.1

2.ScheduleConfig

配置工厂类的参数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
@Configuration
public class ScheduleConfig {

    @Bean
    public SchedulerFactoryBean schedulerFactoryBean(DataSource dataSource) {
        SchedulerFactoryBean factory = new SchedulerFactoryBean();
        factory.setDataSource(dataSource);
        // quartz参数
        Properties prop = new Properties();
        prop.put("org.quartz.scheduler.instanceName", "QUARTZ");
        prop.put("org.quartz.scheduler.instanceId", "AUTO");
        // 线程池配置
        prop.put("org.quartz.threadPool.class", "org.quartz.simpl.SimpleThreadPool");
        prop.put("org.quartz.threadPool.threadCount", "20");
        prop.put("org.quartz.threadPool.threadPriority", "5");
        // JobStore配置
        prop.put("org.quartz.jobStore.class", "org.quartz.impl.jdbcjobstore.JobStoreTX");
        // 集群配置
        prop.put("org.quartz.jobStore.isClustered", "true");
        prop.put("org.quartz.jobStore.clusterCheckinInterval", "15000");
        prop.put("org.quartz.jobStore.maxMisfiresToHandleAtATime", "1");
        prop.put("org.quartz.jobStore.txIsolationLevelSerializable", "true");
        // sqlserver 启用
        prop.put("org.quartz.jobStore.misfireThreshold", "12000");
        prop.put("org.quartz.jobStore.tablePrefix", "QRTZ_");
        factory.setQuartzProperties(prop);
        factory.setSchedulerName("QUARTZ");
        // 延时启动
        factory.setStartupDelay(1);
        factory.setApplicationContextSchedulerContextKey("applicationContextKey");
        // 可选，QuartzScheduler
        // 启动时更新己存在的Job，这样就不用每次修改targetObject后删除qrtz_job_details表对应记录了
        factory.setOverwriteExistingJobs(true);
        // 设置自动启动，默认为true
        factory.setAutoStartup(true);
        return factory;
    }
}

3.业务类

主要是为页面提供接口。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
@RestController
@RequestMapping("/qrtzJob")
public class QrtzJobController {

    @Autowired
    private QrtzJobService qrtzJobService;

    /**
     * 检查表达式
     *
     * @param cron
     * @return
     */
    @GetMapping("/check")
    public boolean checkCron(String cron) {
        try {
            return CronExpression.isValidExpression(cron);
        } catch (Exception e) {
            return false;
        }
    }

    /**
     * 通过对象查询数据
     *
     * @param qrtzJobVO 请求对象
     * @return 数据集合
     */
    @GetMapping("/selectQrtzJob")
    @ApiOperation(value = "通过实体查询", notes = "通过实体查询")
    public Result>
        selectQrtzJob(@ApiParam(name = "入参对象", value = "实体", required = false) QrtzJobVO qrtzJobVO) {
        Result> resultVO = new Result();
        // 业务查询
        List resultListQrtzJob = qrtzJobService.queryQrtzJobAll(qrtzJobVO);
        resultVO.setData(resultListQrtzJob);
        return resultVO;
    }

    /**
     * 通过对象增加数据
     *
     * @param qrtzJobVO 请求对象
     * @return
     */

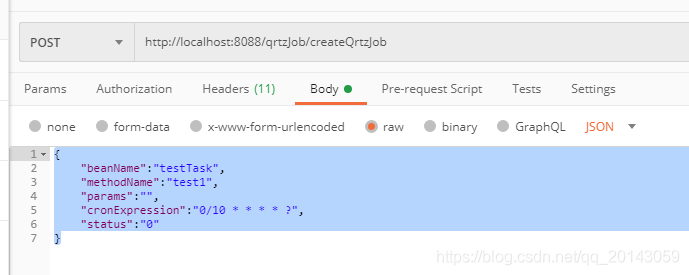

    @PostMapping("/createQrtzJob")
    @ApiOperation(value = "通过实体添加", notes = "通过实体添加")
    public Result
        createQrtzJob(@ApiParam(name = "入参对象", value = "实体", required = false) @RequestBody QrtzJobVO qrtzJobVO) {
        Result resultVO = new Result();
        // 业务处理
        qrtzJobService.createScheduleJob(qrtzJobVO);
        return resultVO;
    }

    /**
     * 通过对象修改
     *
     * @param qrtzJobVO 请求对象
     * @return
     */
    @PutMapping("/updateQrtzJob")
    @ApiOperation(value = "通过实体修改", notes = "通过实体修改")
    public Result
        updateQrtzJob(@ApiParam(name = "入参对象", value = "实体", required = false) @RequestBody QrtzJobVO qrtzJobVO) {
        Result resultVO = new Result();
        // 业务处理
        qrtzJobService.updateScheduleJob(qrtzJobVO);
        return resultVO;
    }

    /**
     * 通过对象删除
     *
     * @param qrtzJobVO 请求对象
     * @return
     */
    @DeleteMapping("/deleteQrtzJob")
    @ApiOperation(value = "通过实体删除", notes = "通过实体删除")
    public Result
        deleteQrtzJob(@ApiParam(name = "入参对象", value = "实体", required = false) @RequestBody QrtzJobVO qrtzJobVO) {
        Result resultVO = new Result();
        // 业务处理
        qrtzJobService.deleteScheduleJob(qrtzJobVO);
        return resultVO;
    }

    /**
     * 运行定时任务
     *
     * @param qrtzJobVO
     * @return
     */
    @GetMapping("/runJob")
    public Result
        runJob(@ApiParam(name = "入参对象", value = "实体", required = false) @RequestBody List qrtzJobVO) {
        Result resultVO = new Result();
        // 业务处理
        qrtzJobService.run(qrtzJobVO);
        return resultVO;
    }

    /**
     * 暂停定时任务
     *
     * @param qrtzJobVO
     * @return
     */
    @GetMapping("/pauseJob")
    public Result
        pauseJob(@ApiParam(name = "入参对象", value = "实体", required = false) @RequestBody List qrtzJobVO) {
        Result resultVO = new Result();
        // 业务处理
        qrtzJobService.pause(qrtzJobVO);
        return resultVO;
    }

    @GetMapping("resumeJob")
    public Result
        resumeJob(@ApiParam(name = "入参对象", value = "实体", required = false) @RequestBody List qrtzJobVO) {
        Result resultVO = new Result();
        // 业务处理
        qrtzJobService.resume(qrtzJobVO);
        return resultVO;
    }

}

4.运行配置

ScheduleUtils:将新添加的trigger，jobDetail放入scheduler中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
public class ScheduleUtils {

    private static final Logger log = LoggerFactory.getLogger(ScheduleUtils.class);

    private static final String JOB_NAME_PREFIX = "TASK_";

    private static TriggerKey getTriggerKey(Long jobId) {
        return TriggerKey.triggerKey("TASK_" + jobId);
    }

    private static JobKey getJobKey(Long jobId) {
        return JobKey.jobKey("TASK_" + jobId);
    }

    public static CronTrigger getCronTrigger(Scheduler scheduler, Long jobId) {
        try {
            return (CronTrigger)scheduler.getTrigger(getTriggerKey(jobId));
        } catch (SchedulerException e) {
            log.error("获取Cron表达式失败", e);
            return null;
        }
    }

    public static void createScheduleJob(Scheduler scheduler, QrtzJobVO scheduleJob) {
        try {
            JobDetail jobDetail = JobBuilder.newJob(com.job.util.ScheduleJob.class)
                .withIdentity(getJobKey(scheduleJob.getJobId())).build();
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(scheduleJob.getCronExpression())
                .withMisfireHandlingInstructionDoNothing();
            CronTrigger trigger = (CronTrigger)TriggerBuilder.newTrigger()
                .withIdentity(getTriggerKey(scheduleJob.getJobId())).withSchedule(scheduleBuilder).build();
            jobDetail.getJobDataMap().put("JOB_PARAM_KEY", scheduleJob);
            scheduler.scheduleJob(jobDetail, trigger);
            if (scheduleJob.getStatus().equals(CommonConstant.QUARTZ_PAUSE)) {
                pauseJob(scheduler, scheduleJob.getJobId());
            }
        } catch (SchedulerException e) {
            log.error("创建定时任务失败", e);
        }
    }

    public static void updateScheduleJob(Scheduler scheduler, QrtzJobVO scheduleJob) {
        try {
            TriggerKey triggerKey = getTriggerKey(scheduleJob.getJobId());
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(scheduleJob.getCronExpression())
                .withMisfireHandlingInstructionDoNothing();
            CronTrigger trigger = getCronTrigger(scheduler, scheduleJob.getJobId());
            if (trigger == null) {
                throw new SchedulerException("获取Cron表达式失败");
            }
            trigger =
                (CronTrigger)trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();
            trigger.getJobDataMap().put("JOB_PARAM_KEY", scheduleJob);
            scheduler.rescheduleJob(triggerKey, trigger);
            if (scheduleJob.getStatus().equals(CommonConstant.QUARTZ_PAUSE)) {
                pauseJob(scheduler, scheduleJob.getJobId());
            }
        } catch (SchedulerException e) {
            log.error("更新定时任务失败", e);
        }
    }

    public static void run(Scheduler scheduler, QrtzJobVO scheduleJob) {
        try {
            JobDataMap dataMap = new JobDataMap();
            dataMap.put("JOB_PARAM_KEY", scheduleJob);
            scheduler.triggerJob(getJobKey(scheduleJob.getJobId()), dataMap);
        } catch (SchedulerException e) {
            log.error("执行定时任务失败", e);
        }
    }

    public static void pauseJob(Scheduler scheduler, Long jobId) {
        try {
            scheduler.pauseJob(getJobKey(jobId));
        } catch (SchedulerException e) {
            log.error("暂停定时任务失败", e);
        }
    }

    public static void resumeJob(Scheduler scheduler, Long jobId) {
        try {
            scheduler.resumeJob(getJobKey(jobId));
        } catch (SchedulerException e) {
            log.error("恢复定时任务失败", e);
        }
    }

    public static void deleteScheduleJob(Scheduler scheduler, Long jobId) {
        try {
            scheduler.deleteJob(getJobKey(jobId));
        } catch (SchedulerException e) {
            log.error("删除定时任务失败", e);
        }
    }
}

5.ScheduleJob

用于执行定时任务。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public class ScheduleJob extends QuartzJobBean {

    private static final Logger log = LoggerFactory.getLogger(ScheduleJob.class);

    private ExecutorService service = Executors.newSingleThreadExecutor();

    @Override
    protected void executeInternal(JobExecutionContext context) {
        QrtzJobVO scheduleJob = (QrtzJobVO)context.getMergedJobDataMap().get("JOB_PARAM_KEY");
        QrtzJobLogService scheduleJobLogService = (QrtzJobLogService) SpringContextUtil.getBean(QrtzJobLogService.class);
        QrtzJobLogVO jobLog = new QrtzJobLogVO();
        jobLog.setJobId(scheduleJob.getJobId());
        jobLog.setBeanName(scheduleJob.getBeanName());
        jobLog.setMethodName(scheduleJob.getMethodName());
        if (CommonUtil.isEmpty(scheduleJob.getParams())) {
            jobLog.setParams("");
        } else {
            jobLog.setParams(scheduleJob.getParams());
        }
        long startTime = System.currentTimeMillis();
        try {
            log.info("任务准备执行，任务ID：{}", scheduleJob.getJobId());
            ScheduleRunnable task =
                new ScheduleRunnable(scheduleJob.getBeanName(), scheduleJob.getMethodName(), scheduleJob.getParams());
            Future> future = this.service.submit(task);
            future.get();
            long times = System.currentTimeMillis() - startTime;
            jobLog.setTimes(Long.valueOf(times));
            jobLog.setStatus("0");
            log.info("任务执行完毕，任务ID：{} 总共耗时：{} 毫秒", scheduleJob.getJobId(), Long.valueOf(times));
        } catch (Exception e) {
            log.error("任务执行失败，任务ID：" + scheduleJob.getJobId(), e);
            long times = System.currentTimeMillis() - startTime;
            jobLog.setTimes(Long.valueOf(times));
            jobLog.setStatus("1");
            jobLog.setError(StringUtils.substring(e.toString(), 0, 2000));
        } finally {
            scheduleJobLogService.insertQrtzJobLog(jobLog);
        }
    }
}

6.ScheduleRunnable

通过反射回去需要调用的类与方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
public class ScheduleRunnable implements Runnable {

    private static final Logger log = LoggerFactory.getLogger(ScheduleRunnable.class);

    private Object target;

    private Method method;

    private String params;

    ScheduleRunnable(String beanName, String methodName, String params)
        throws NoSuchMethodException, SecurityException {
        this.target = SpringContextUtil.getBean(beanName);
        this.params = params;
        if (StringUtils.isNotBlank(params)) {
            this.method = this.target.getClass().getDeclaredMethod(methodName, new Class[] {String.class});
        } else {
            this.method = this.target.getClass().getDeclaredMethod(methodName, new Class[0]);
        }
    }

    @Override
    public void run() {
        try {
            ReflectionUtils.makeAccessible(this.method);
            if (StringUtils.isNotBlank(this.params)) {
                this.method.invoke(this.target, new Object[] {this.params});
            } else {
                this.method.invoke(this.target, new Object[0]);
            }
        } catch (Exception e) {
            log.error("执行定时任务失败", e);
        }
    }
}

5.使用

调用以上接口 ，参数如下。

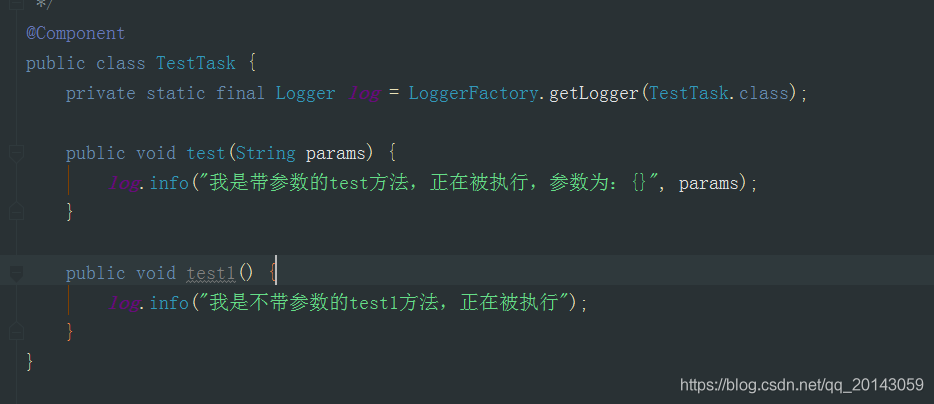

    “beanName”:”任务类”,
    “methodName”:”任务方法”,
    “params”:”参数”,
    “cronExpression”:”表达式”,

总结

到此这篇关于可视化定时任务quartz集成解析的文章就介绍到这了,更多相关quartz集成解析内容请搜索IT俱乐部以前的文章或继续浏览下面的相关文章希望大家以后多多支持IT俱乐部！

本文收集自网络，不代表IT俱乐部立场，转载请注明出处。https://www.2it.club/code/java/7269.html
48赞
标签:
上一篇
下一篇

相关推荐

联系我们

联系我们

在线咨询: QQ交谈

邮箱: 1120393934@qq.com

工作时间：周一至周五，9:00-17:30，节假日休息

关注微信
微信扫一扫关注我们

微信扫一扫关注我们

返回顶部
